Product Description

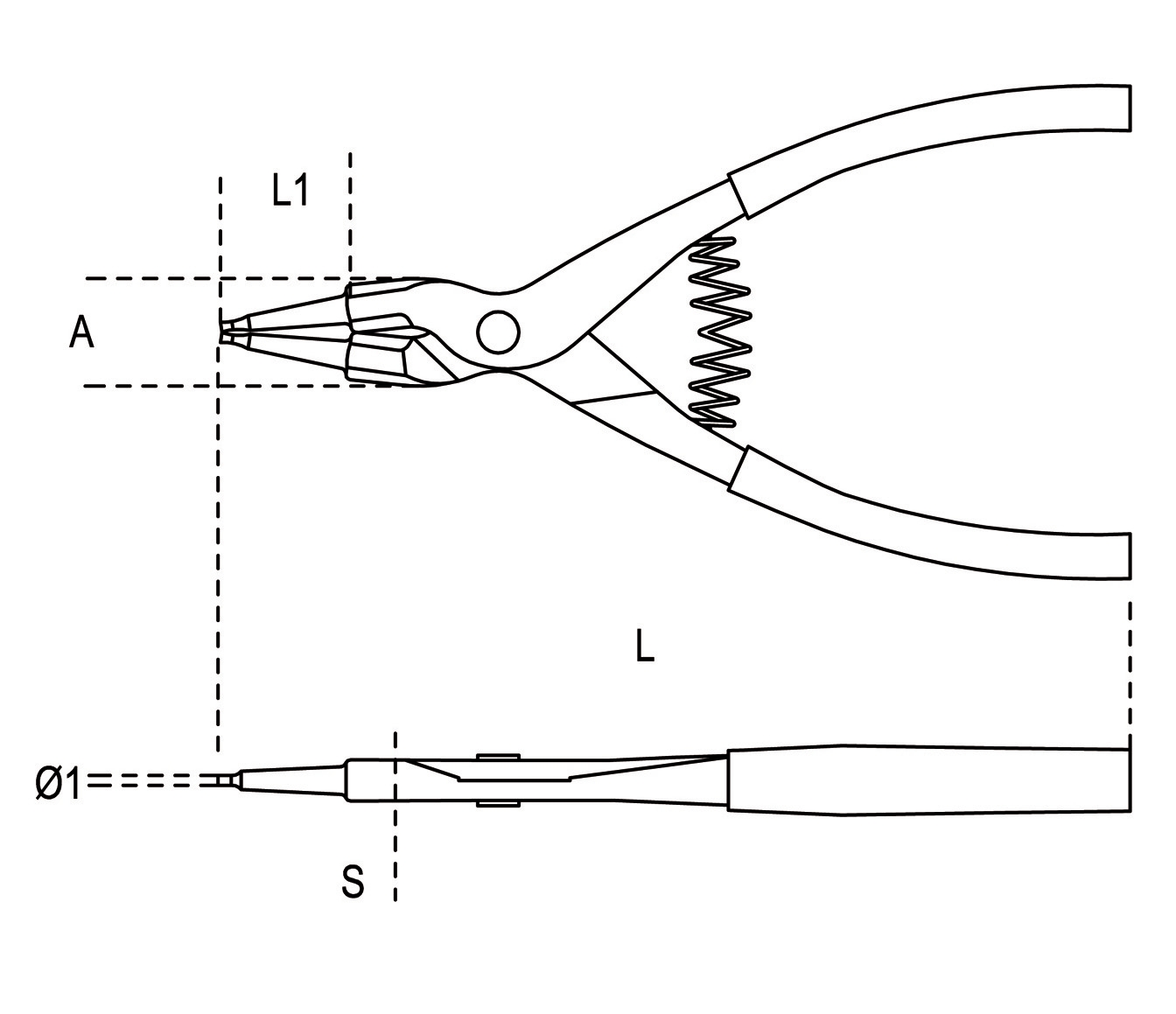

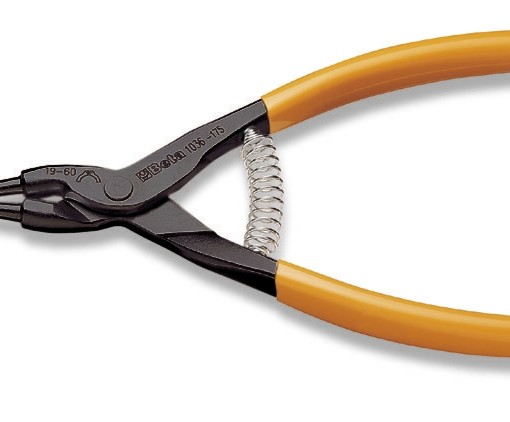

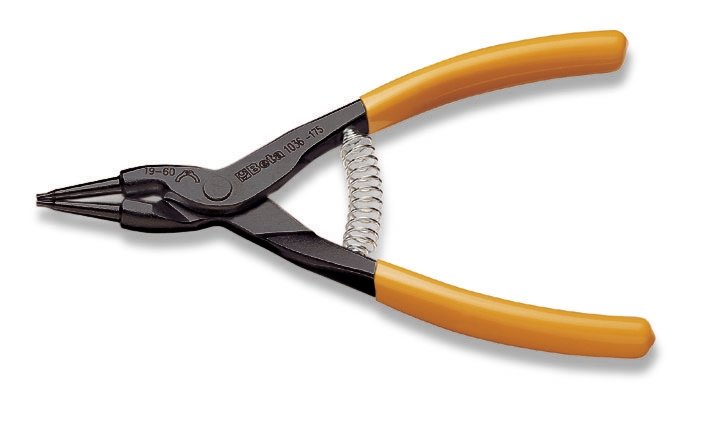

| 1036 external circlip pliers, straight pattern PVC-coated handles | art. | L mm |
Ø mm |
Ø1 mm |
A mm |
S mm |
L1 mm |
g |
| 010360013 | 1036 | 140×0,9 | 3÷10 | 0,9 | 20 | 9,4 | 20 | 100 |
| 010360014 | 1036 | 140×1,3 | 10÷25 | 1,3 | 20 | 9,0 | 20 | 100 |
| 010360017 | 1036 | 175 | 19÷60 | 1,9 | 21 | 10,0 | 25 | 160 |
| 010360021 | 1036 | 225 | 40÷100 | 2,3 | 25 | 11,2 | 11 | 250 |
| 010360028 | 1036 | 300 | 85÷200 | 3,2 | 34 | 12,9 | 40 | 500 |
